LoRaWAN Prepaid Water Meter

The Mercury LoRa series LXSGF model is an impeller (Turbine) water meter with a built-in valve and dry type register. It is designed for residential applications with sizes ranging from Dn15 to Dn25, and is intended for metering cold drinking water. The LXSGF model consists of a mechanical water meter, an electric ball valve, and an intelligent unit (IU) Powered by ARM Cortex-M4 Core integrated in LoRa SoC (System on Chip) and a built-in lithium battery. With the pre-equipped LoRa SoC, the analog reading of the water meter can be digitalized and wirelessly transmitted to the meter data collection system. Taking advantage of the LoRaWAN technology, it significantly accelerates the meter reading speed and avoids the risk of visual reading mistakes. It also greatly improves meter readers' safety and customer satisfaction by avoiding intrusion into private facilities.​

Banner n Banner 1 Banner 2 Banner 3 Banner 4 Banner 5 Banner 6 Banner 7 Banner n
your-image-description

LoRaWAN Prepaid Water Meter

The Mercury LoRa series LXSGF model is an impeller (Turbine) water meter with a built-in valve and dry type register. It is designed for residential applications with sizes ranging from Dn15 to Dn25, and is intended for metering cold drinking water. The LXSGF model consists of a mechanical water meter, an electric ball valve, and an intelligent unit (IU) Powered by ARM Cortex-M4 Core integrated in LoRa SoC (System on Chip) and a built-in lithium battery. With the pre-equipped LoRa SoC, the analog reading of the water meter can be digitalized and wirelessly transmitted to the meter data collection system. Taking advantage of the LoRaWAN technology, it significantly accelerates the meter reading speed and avoids the risk of visual reading mistakes. It also greatly improves meter readers' safety and customer satisfaction by avoiding intrusion into private facilities.​

产品图片1 产品图片2 产品图片3 产品图片4 产品图片5 产品图片6 产品图片7

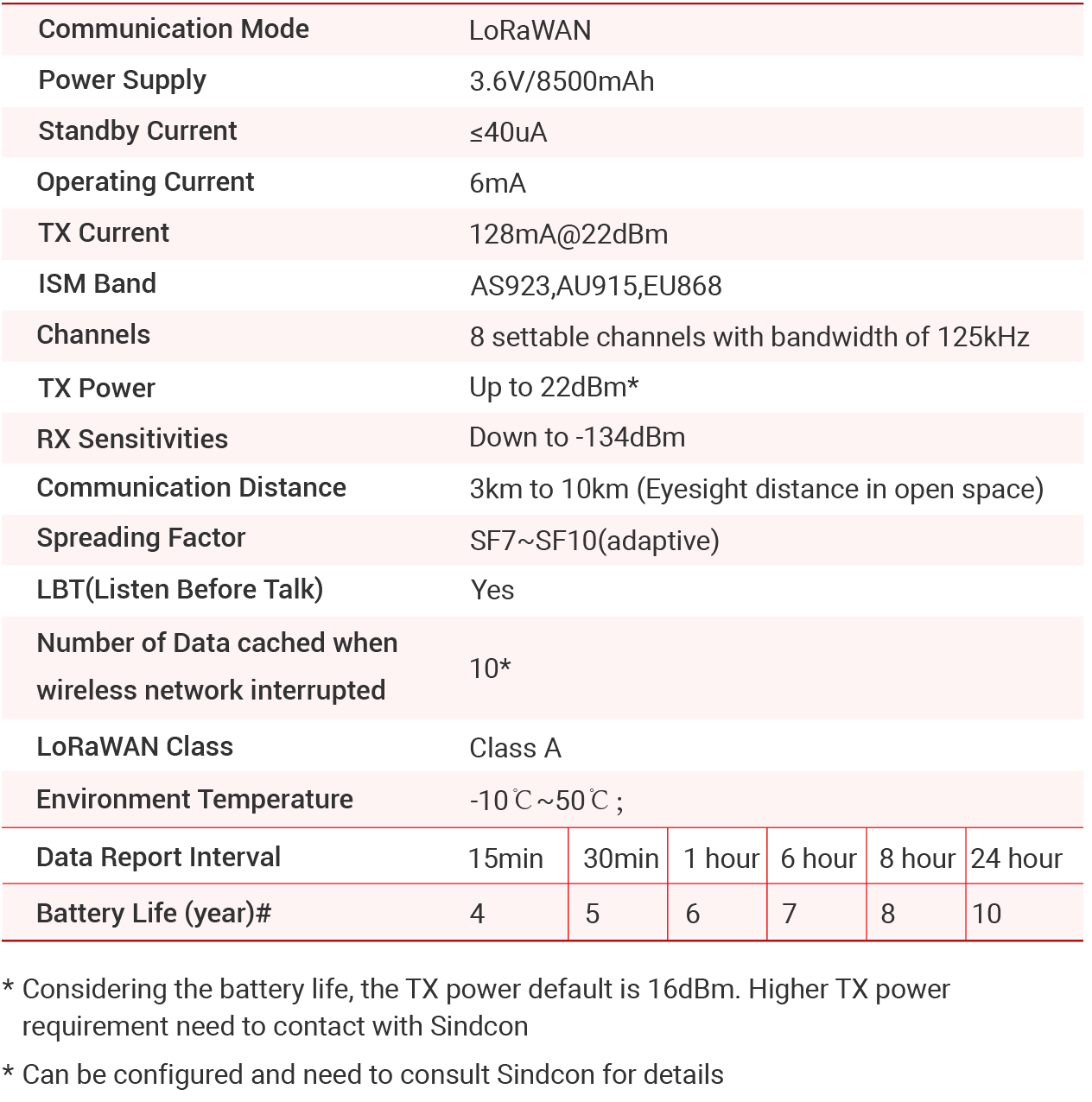

LoRa Radio Parameters

预付费水表
666
snapshot

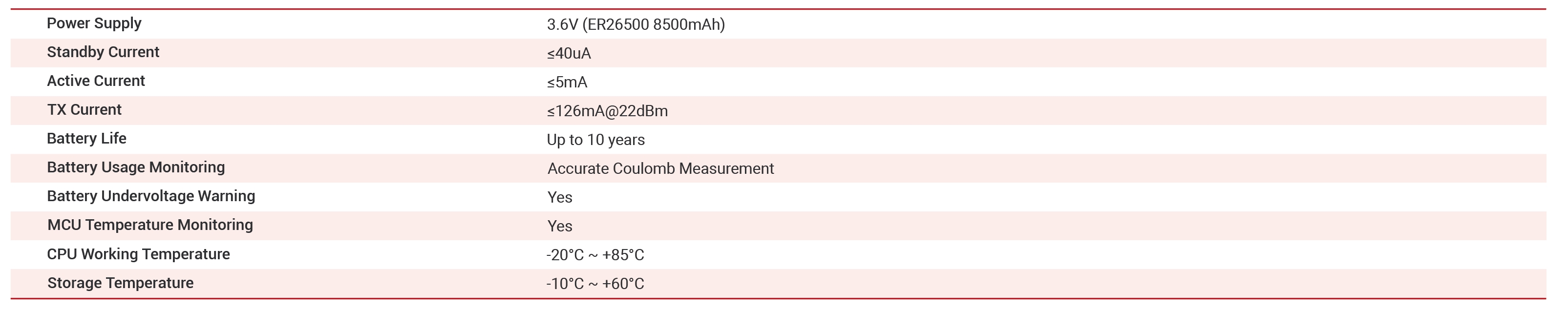

Electrical Parameters

预付费水表1
666
snapshot

Product Parameters

LoRa Radio Parameters
预付费水表 lora
Electrical Parameters
预付费水表 电气
