Multi-Protocol LoRaWAN Bridge

Powered by ARM Cortex-M4 Core integrated LoRa SoC, Sindcon's Neptune series Multi-Protocol LoRaWAN bridge is an affordable solution for converting data from both popular public protocols such as MODBUS, DLMS (IEC 62056) and some proprietary protocols such as EDMI Atlas 1 Energy Meter, to LoRaWAN. It enables reading and writing of any register of the connected device through the LoRaWAN network. The configuration of register mapping of the Multi-Protocol LoRaWAN bridge can be easily done remotely from the Sindcon LoRaWAN server via downlink channels. Moreover, users can use the Mobile App (BusyBox) which is available from Apple Store and Google Store, to configure the bridge device. Additionally, the Sindcon LoRaWAN bridge device comes with a built-in Bluetooth as optional for configuration on field.

Banner n Banner 1 Banner 2 Banner 3 Banner 4 Banner 5 Banner 6 Banner 7 Banner m
your-image-description

Multi-Protocol LoRaWAN Bridge

Powered by ARM Cortex-M4 Core integrated LoRa SoC, Sindcon's Neptune series Multi-Protocol LoRaWAN bridge is an affordable solution for converting data from both popular public protocols such as MODBUS, DLMS (IEC 62056) and some proprietary protocols such as EDMI Atlas 1 Energy Meter, to LoRaWAN. It enables reading and writing of any register of the connected device through the LoRaWAN network. The configuration of register mapping of the Multi-Protocol LoRaWAN bridge can be easily done remotely from the Sindcon LoRaWAN server via downlink channels. Moreover, users can use the Mobile App (BusyBox) which is available from Apple Store and Google Store, to configure the bridge device. Additionally, the Sindcon LoRaWAN bridge device comes with a built-in Bluetooth as optional for configuration on field.

产品图片1 产品图片2 产品图片3 产品图片4 产品图片5 产品图片6 产品图片7

Product Parameters

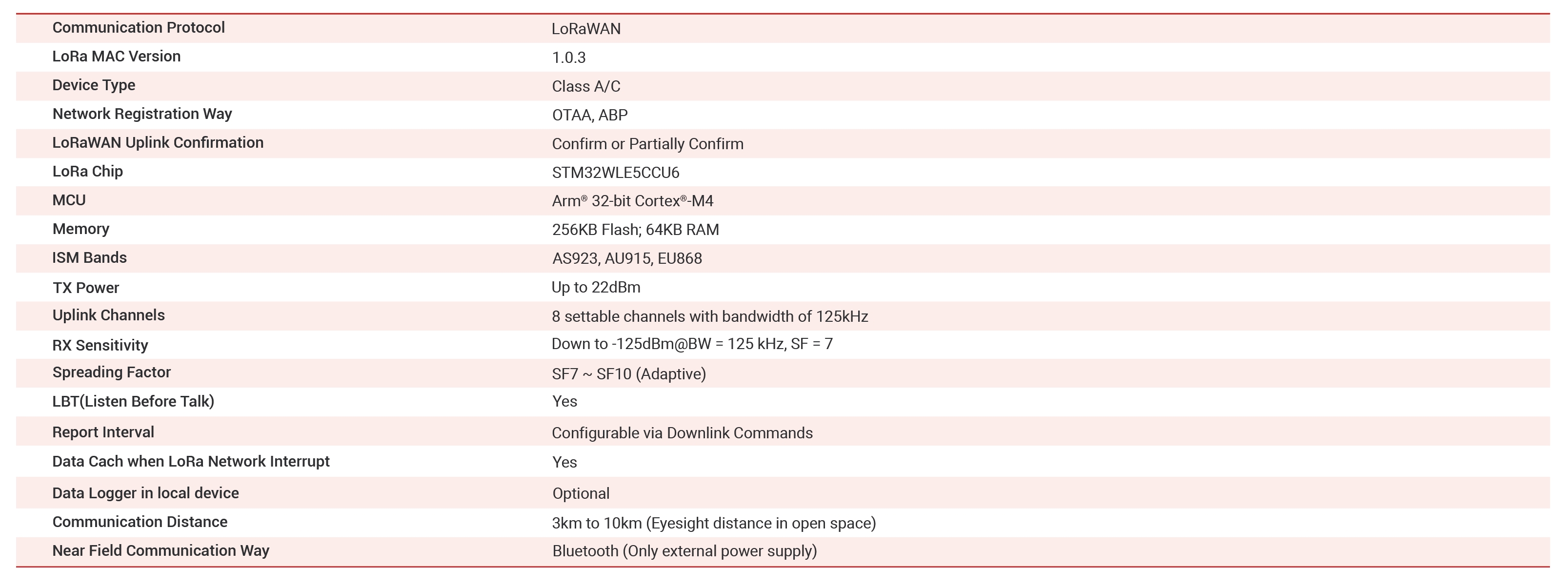

LoRa Radio Parameters
485 lora
Electrical Parameters
485 电气

LoRa Radio Parameters

485
666
snapshot

Electrical Parameters

4851
666
snapshot
